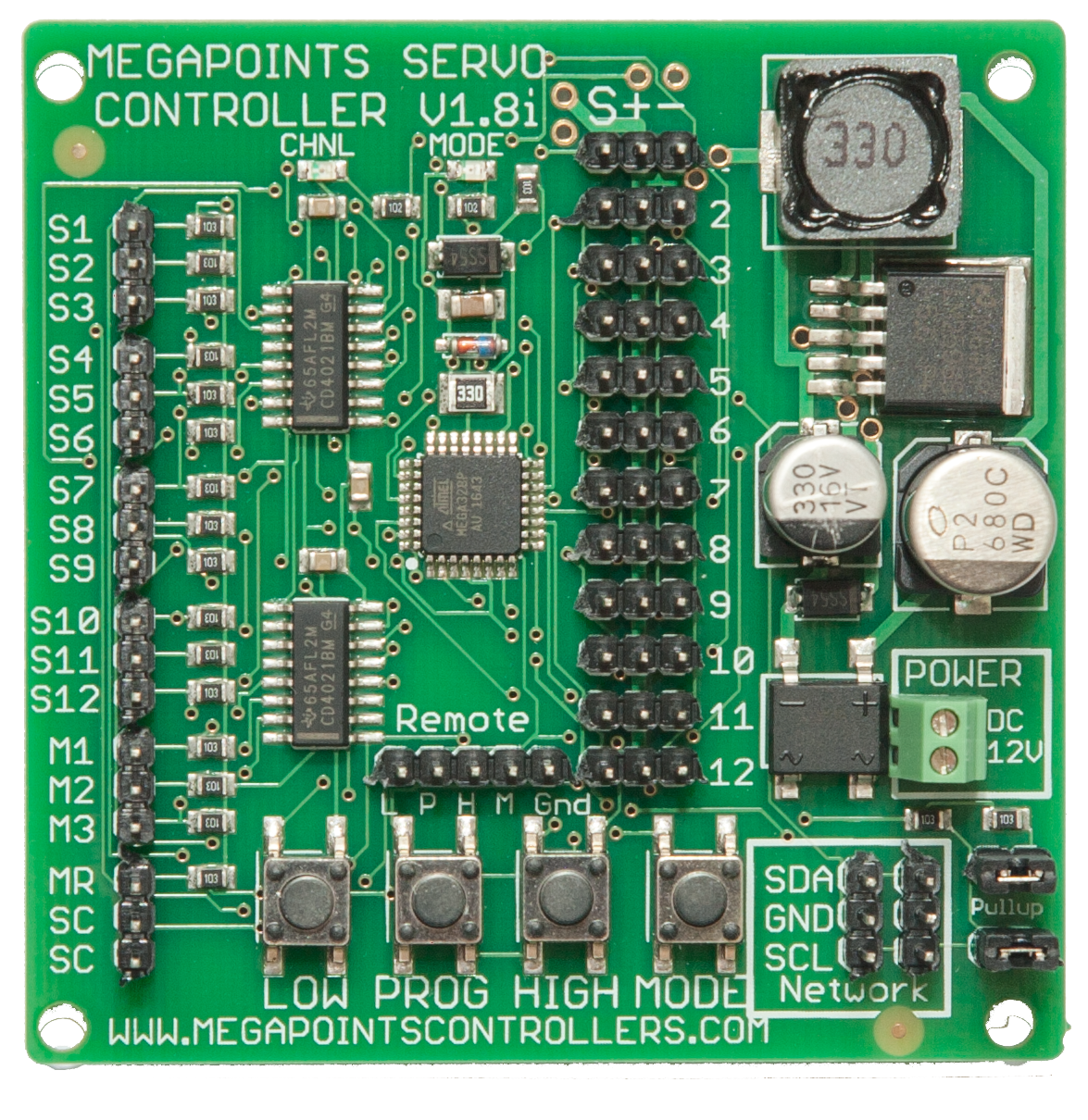

Servo Controller (12)

£63.00 (Ex VAT £52.50)

Control up to 12 servos around your layout. Individually configurable for turnouts, semaphore signals, gates, barriers, doors etc.

Description

Servo controller to control up to 12 servos.
Each channel can be independently set for:

  • Direction
  • Speed
  • Upper quadrant semaphore (with bounce)
  • Lower quadrant semaphore (with bounce)

The Servo Controller controls up to 12 servos on your model railway layout. Its flexible design means that it can be operated by connecting toggle switches directly to the supplied cables or it can be controlled via the built in network interface. This makes remote control via DCC module, MultiPanel or even another Servo Controller all possible.

The Servo Controller has many different user selectable output models including normal and reversed turnout operation, upper or lower quadrant semaphore signal and will even drive a relay module directly. Each of the twelve outputs may be set independently.

All configuration is via the built in buttons and LEDs and requires only one finger to configure. No external devices are required to configure or operate this unit.

Resources

User Guide

Video – Basic setup

Video – Advanced Features

Video – Every feature demonstrated as of SEP-2018

Additional information

Weight 75 g
Dimensions 12 × 11 × 2.5 cm
