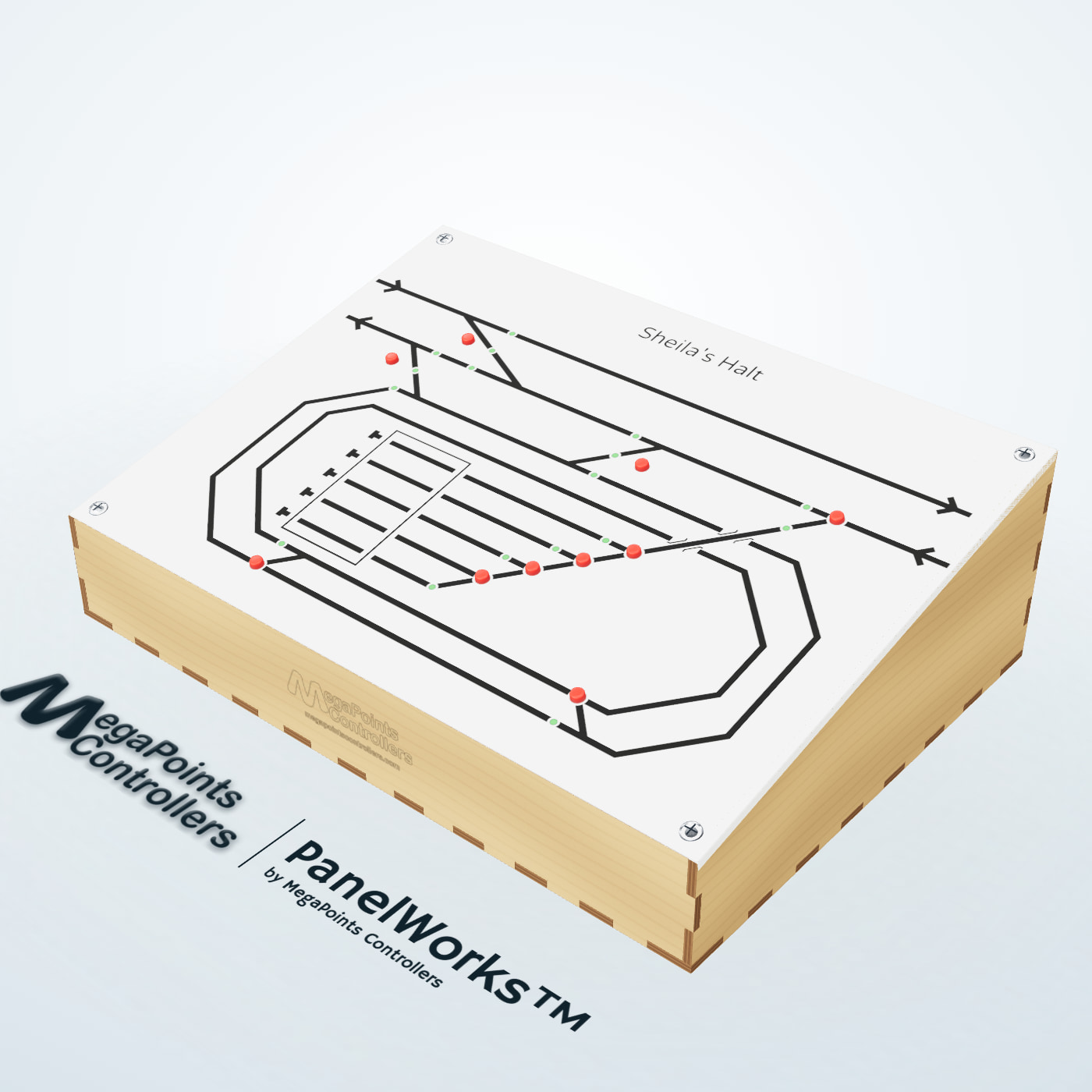

Sheila's Halt, a PanelWorks mimic panel with its buttons and LEDs on the track plan, sitting in its sloping plywood enclosure with the MegaPoints logo engraved on the front

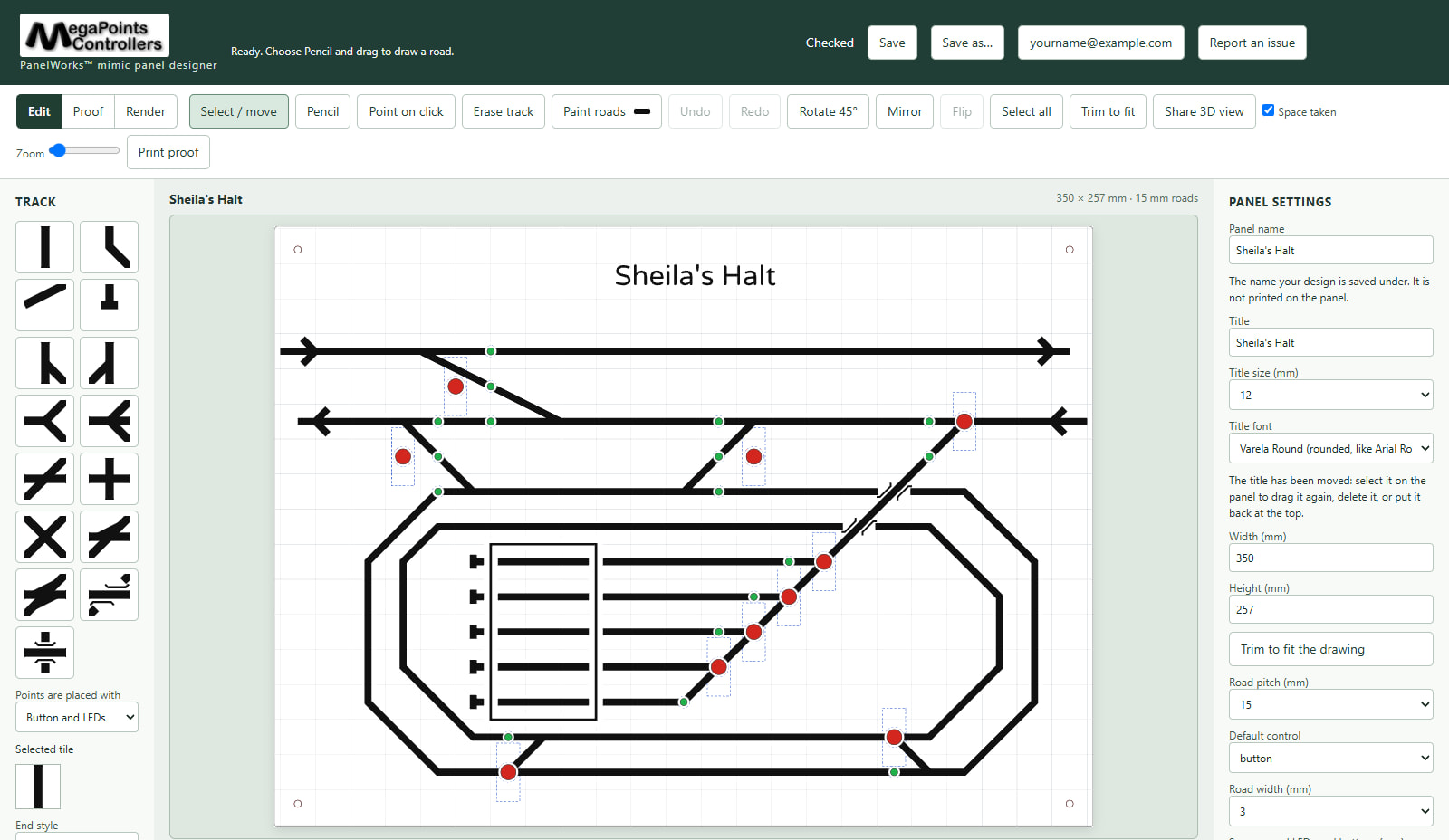

Sheila's Halt open in the PanelWorks mimic panel designer: the track pieces on the left, the panel in the middle and its settings on the right

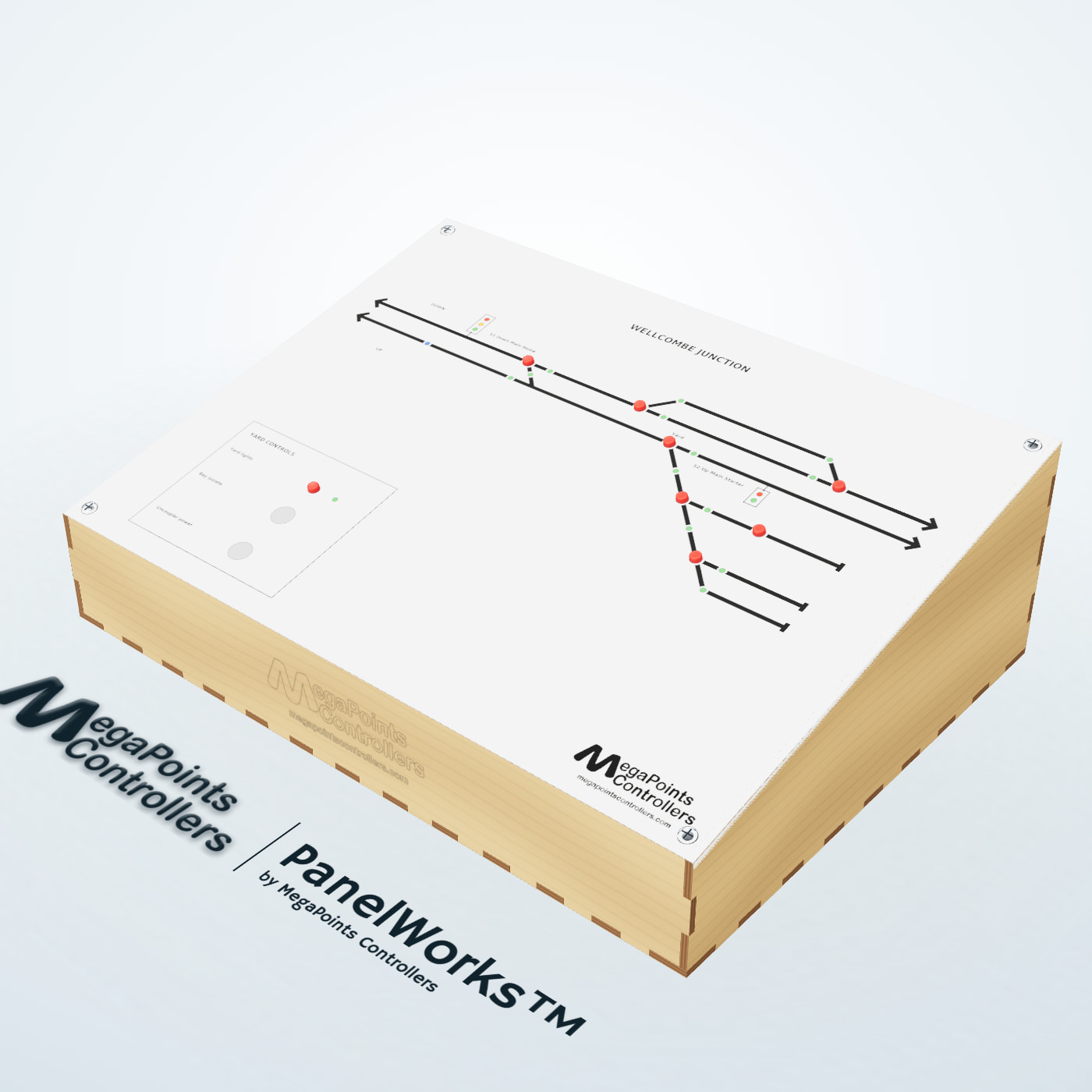

Wellcombe Junction, a PanelWorks mimic panel with signals, buttons, LEDs and yard controls, sitting in its sloping plywood enclosure

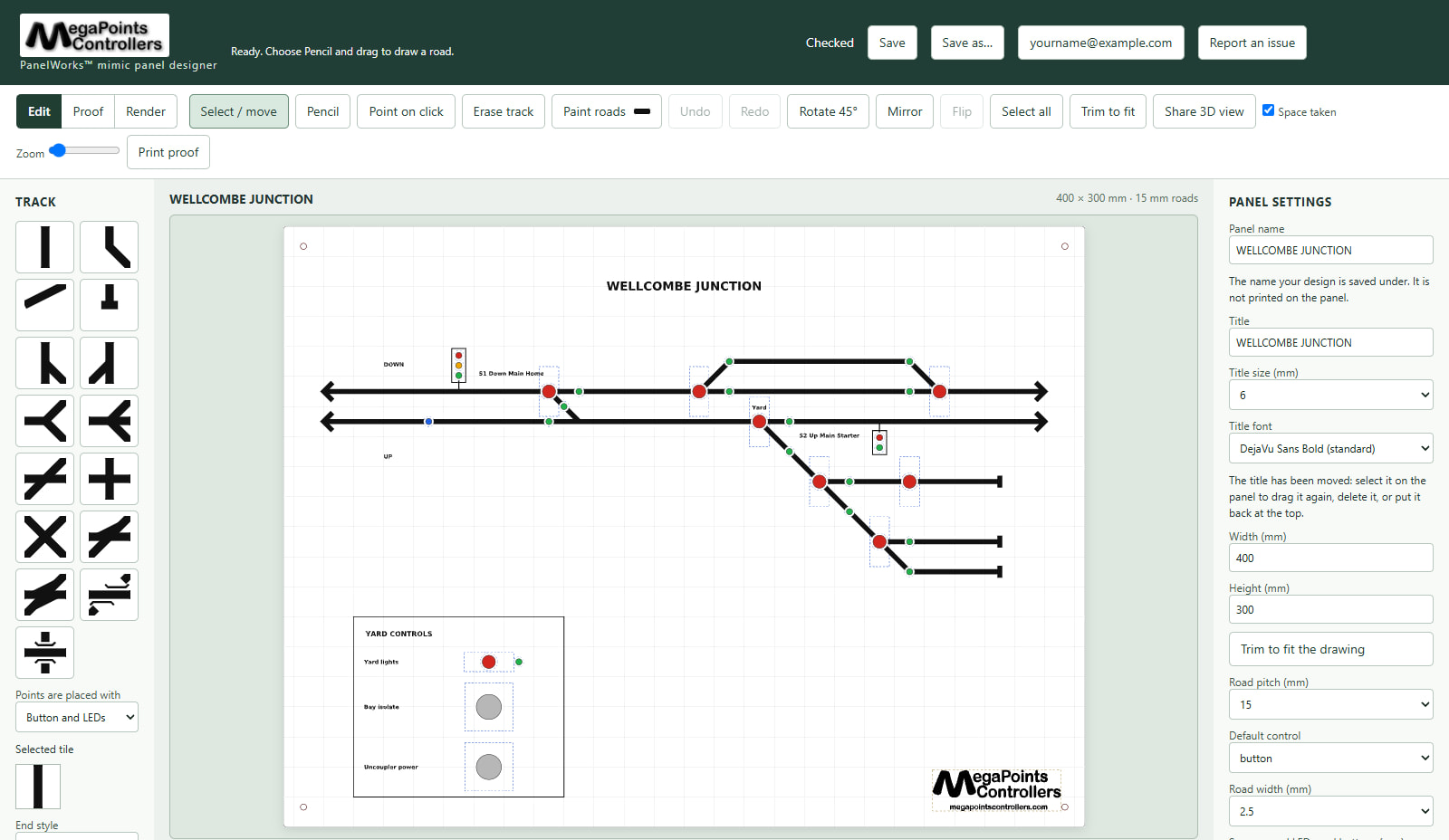

Wellcombe Junction open in the PanelWorks mimic panel designer: the track pieces on the left, the panel in the middle and its settings on the right

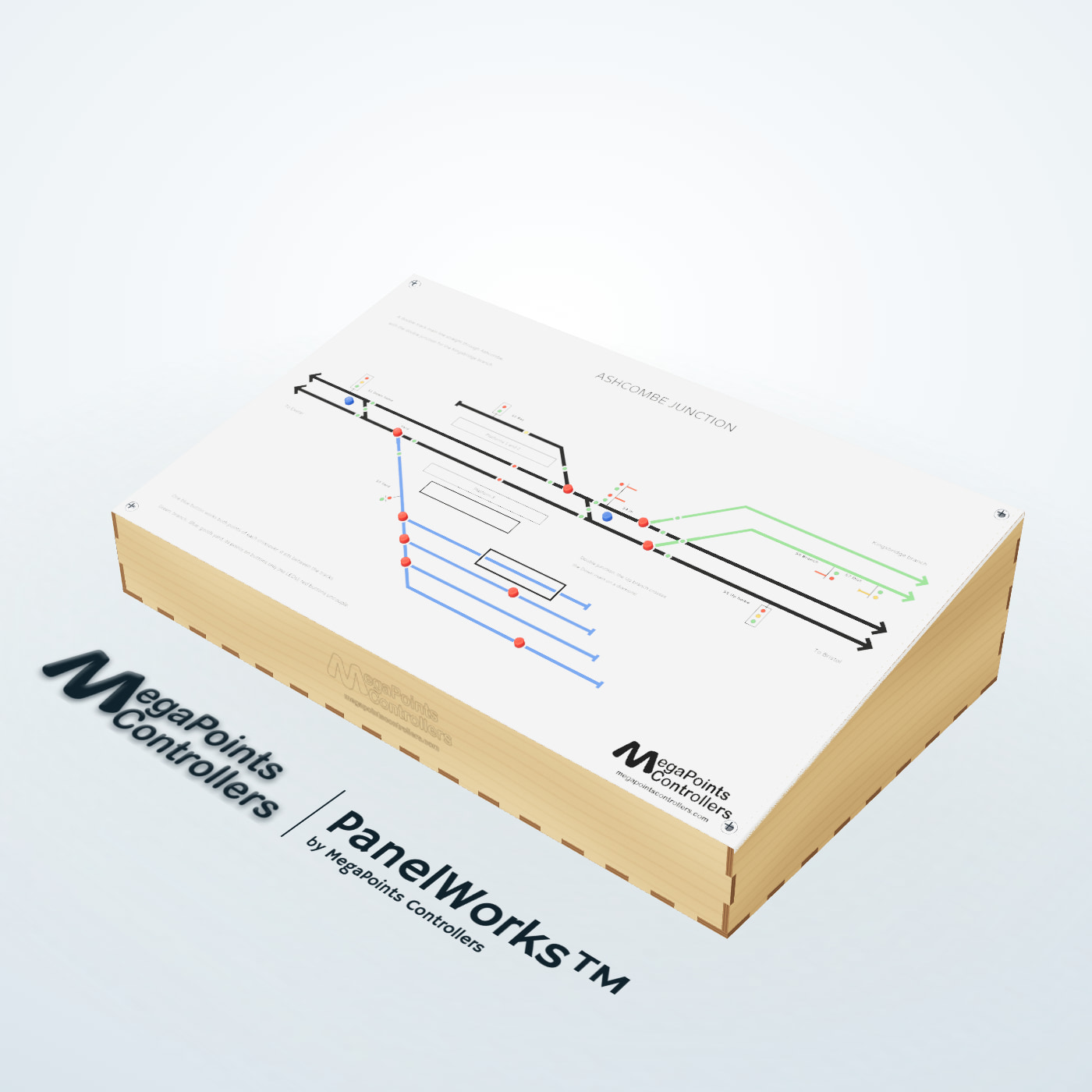

Ashcombe Junction, a 500 x 300 mm sample PanelWorks mimic panel: a double-track main line straight through a station, with a double junction for a branch and a goods yard, in its sloping plywood enclosure

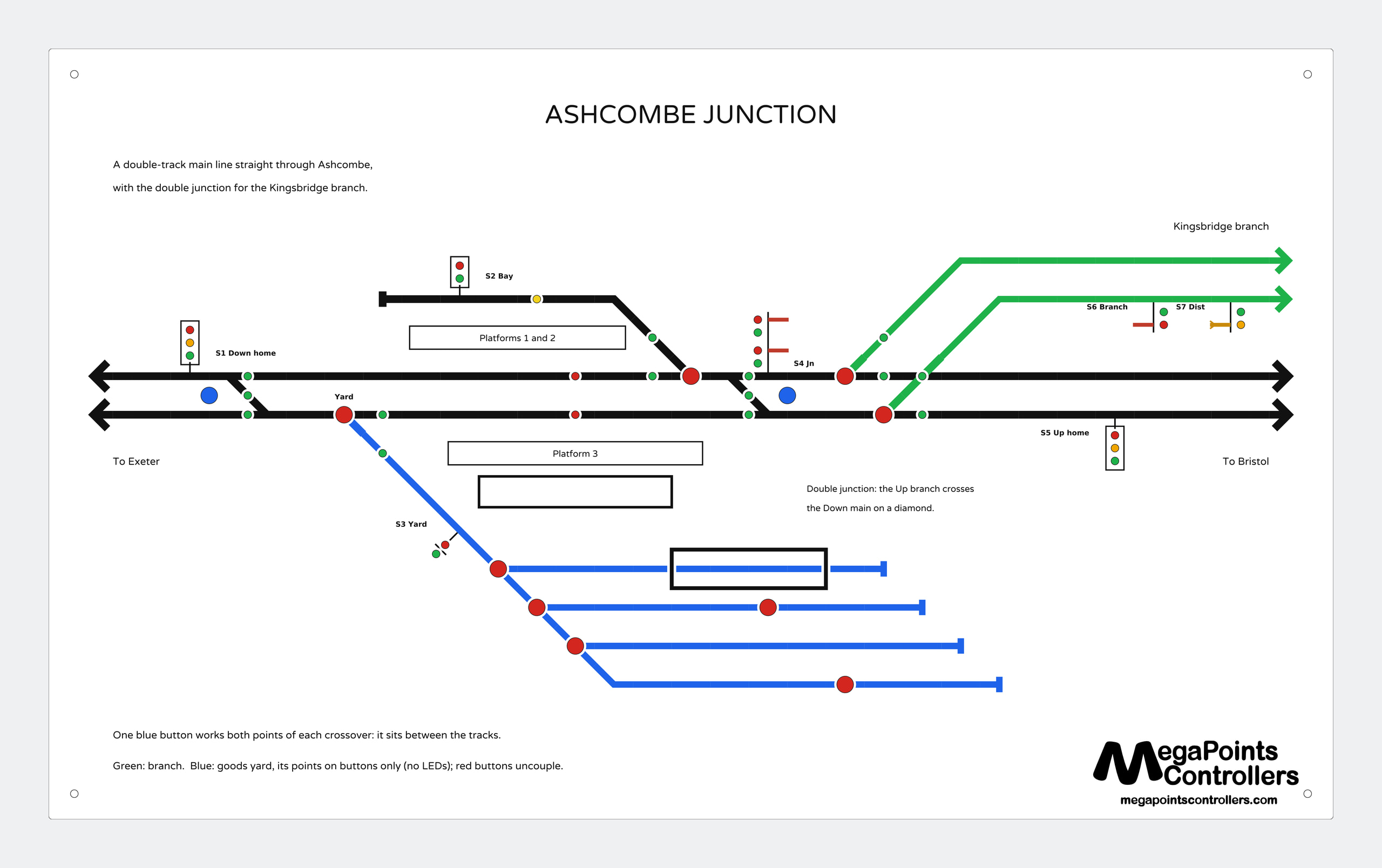

The proof of Ashcombe Junction: crossovers each worked by one button between the tracks, colour-light and semaphore signals, the branch in green and the goods yard in blue

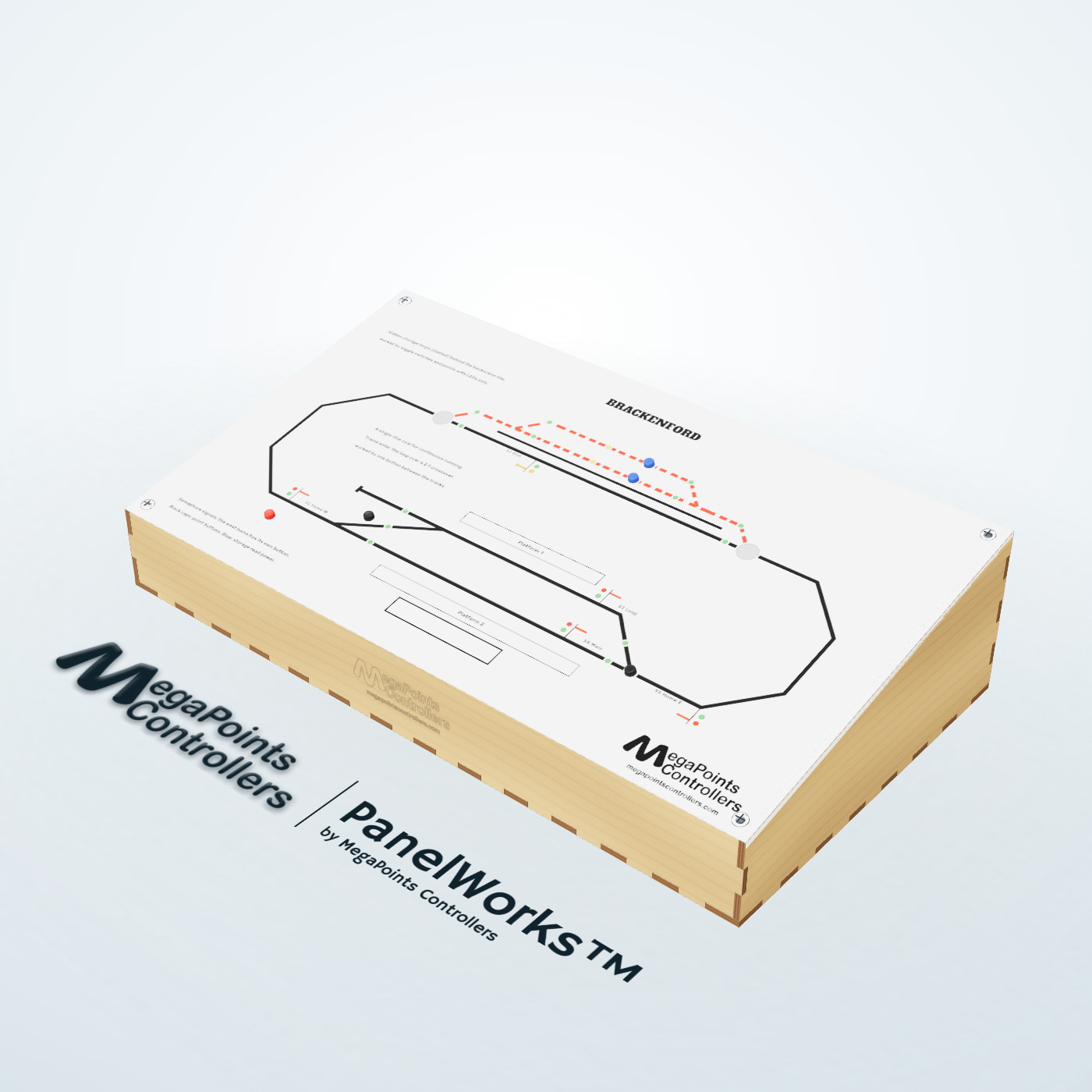

Brackenford, a 450 x 250 mm sample PanelWorks mimic panel: a single-line oval with a station loop and hidden storage loops, in its sloping plywood enclosure

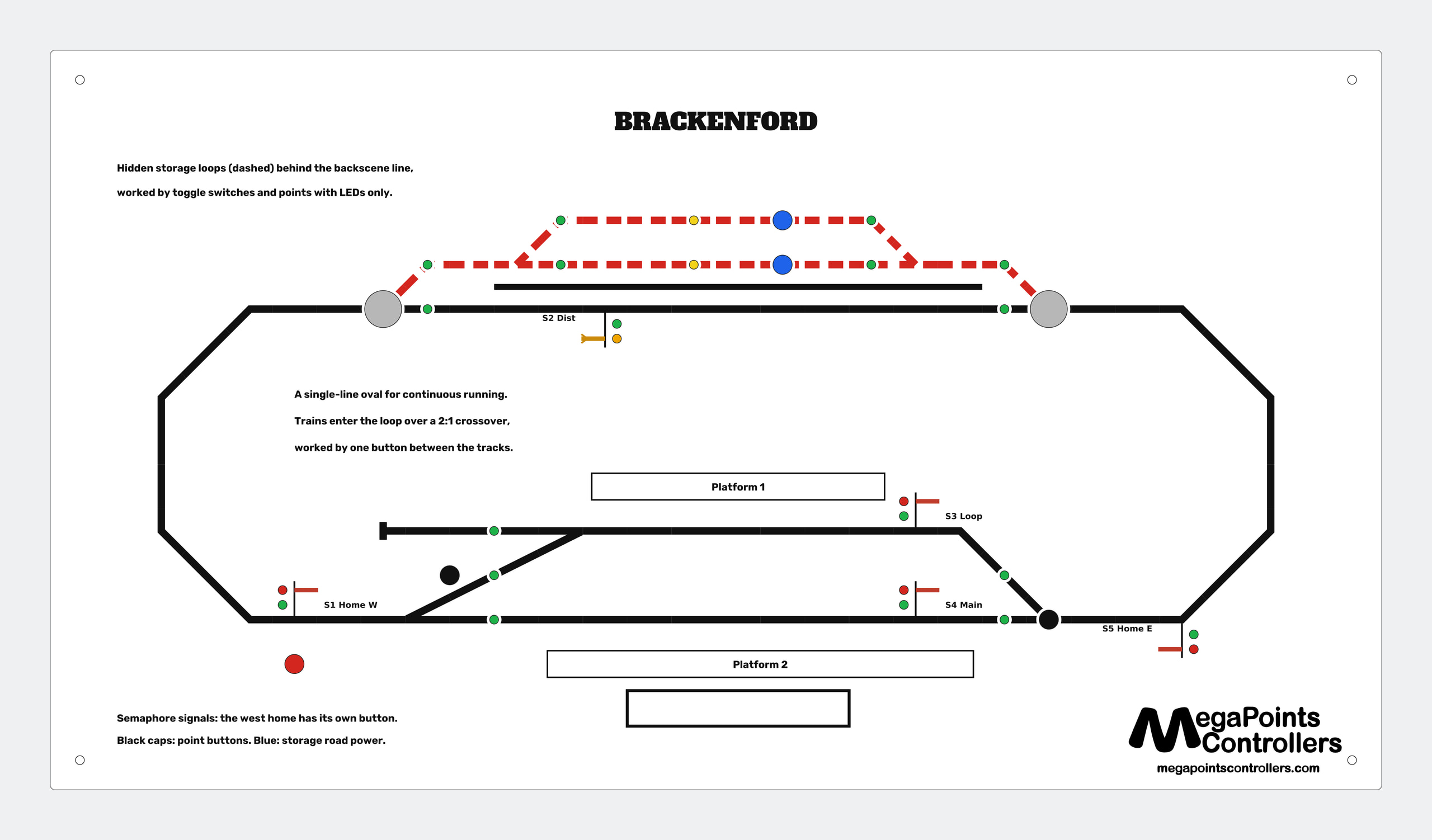

The proof of Brackenford: a 2:1 crossover worked by one button between the tracks, semaphore signals, and the storage loops drawn dashed in red behind the backscene

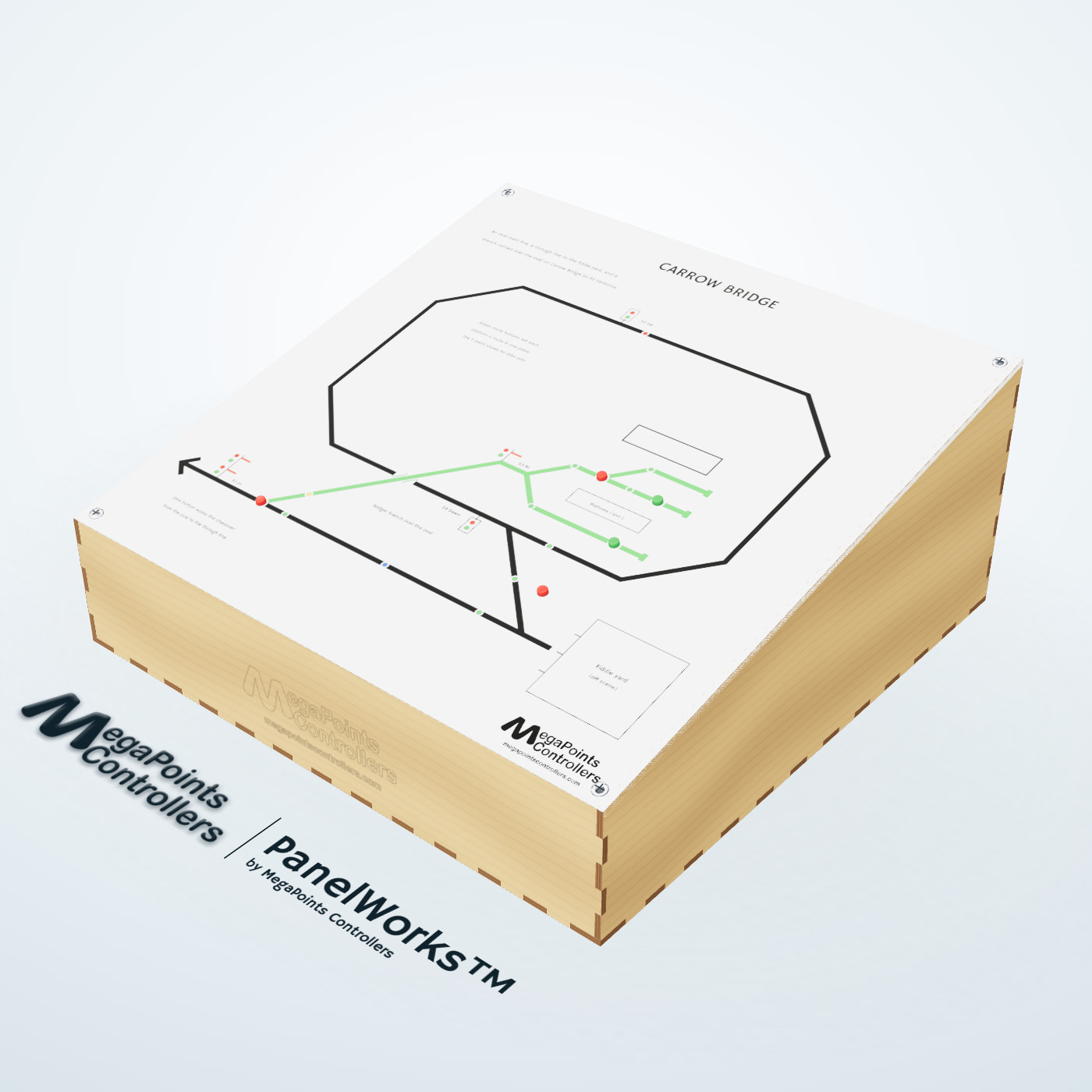

Carrow Bridge, a 400 x 400 mm sample PanelWorks mimic panel: an oval main line and a through line to a fiddle yard, in its sloping plywood enclosure

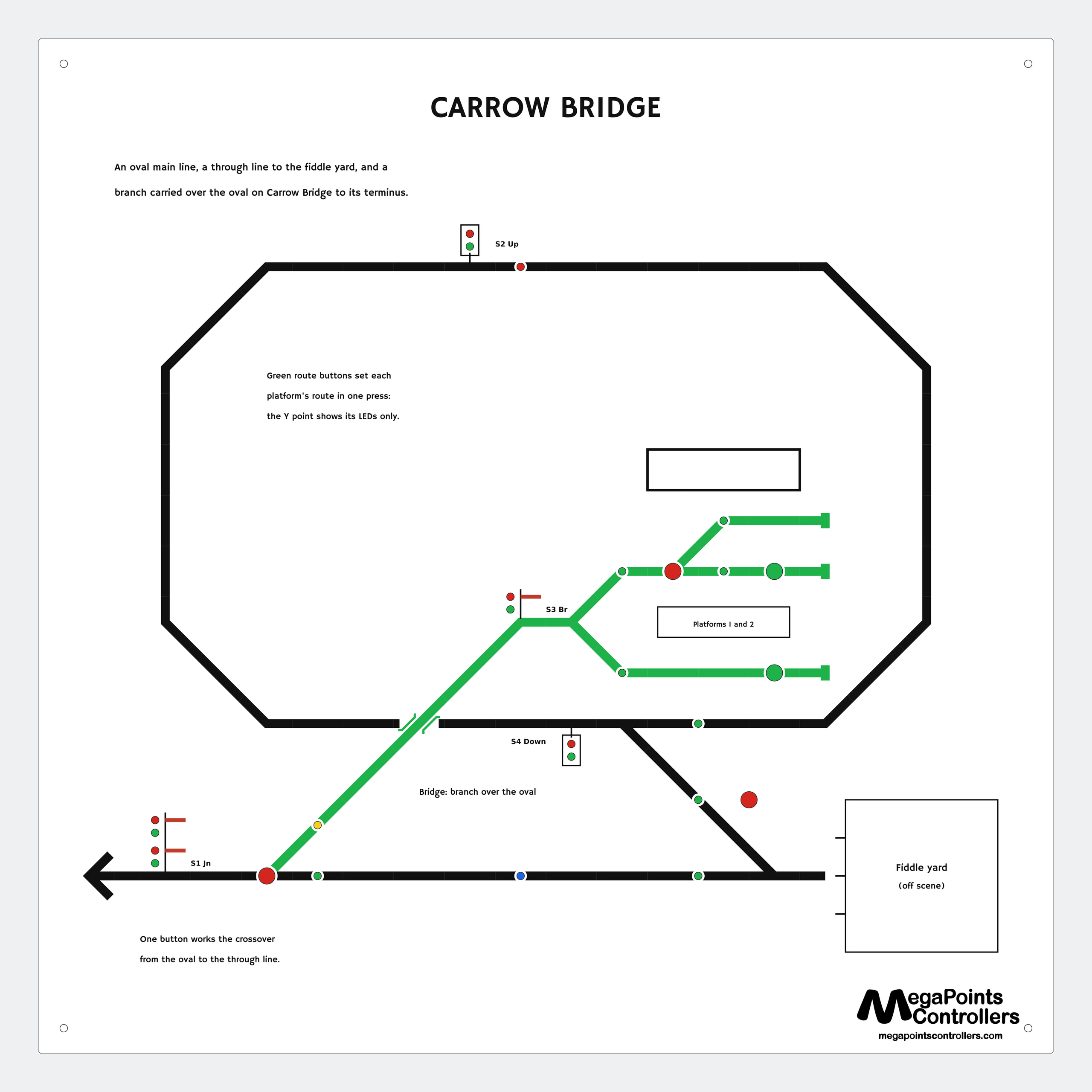

The proof of Carrow Bridge: a branch carried over the oval on a bridge to a terminus whose platforms are set by green route buttons

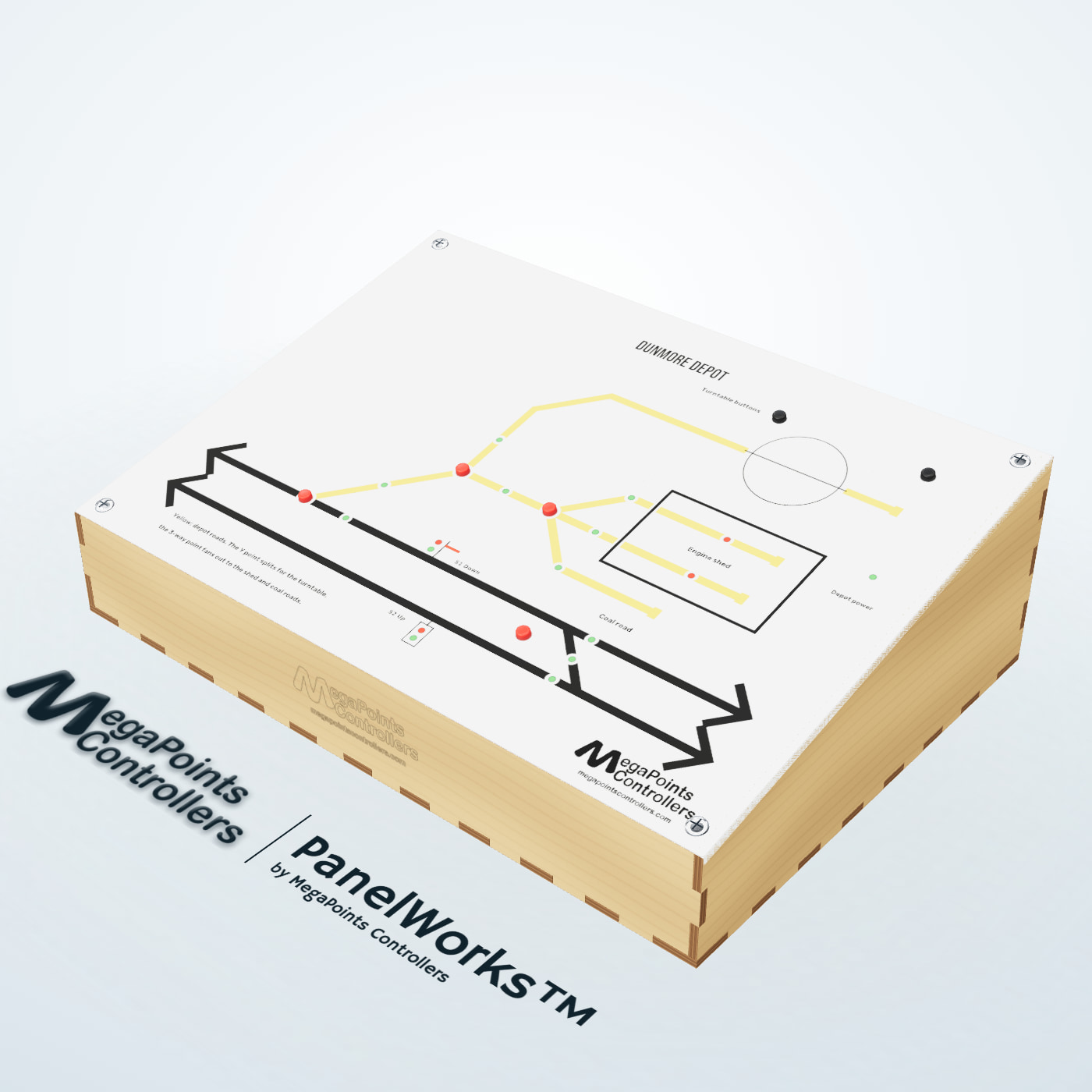

Dunmore Depot, a 350 x 250 mm sample PanelWorks mimic panel on a 25 mm grid: a double-track main line with an engine depot, in its sloping plywood enclosure

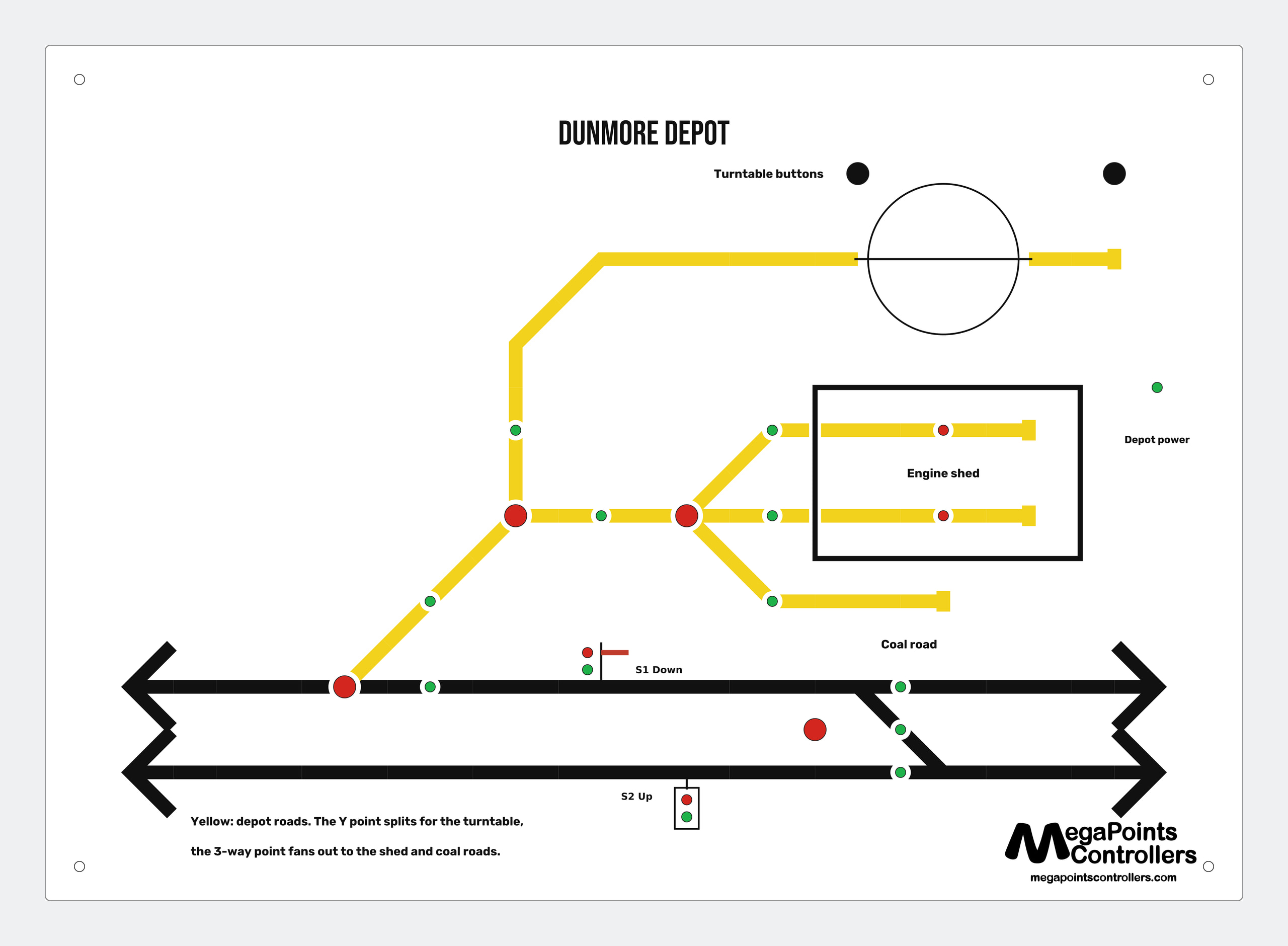

The proof of Dunmore Depot: a Y point to the turntable, a 3-way point to the engine shed and coal road, the depot roads in yellow

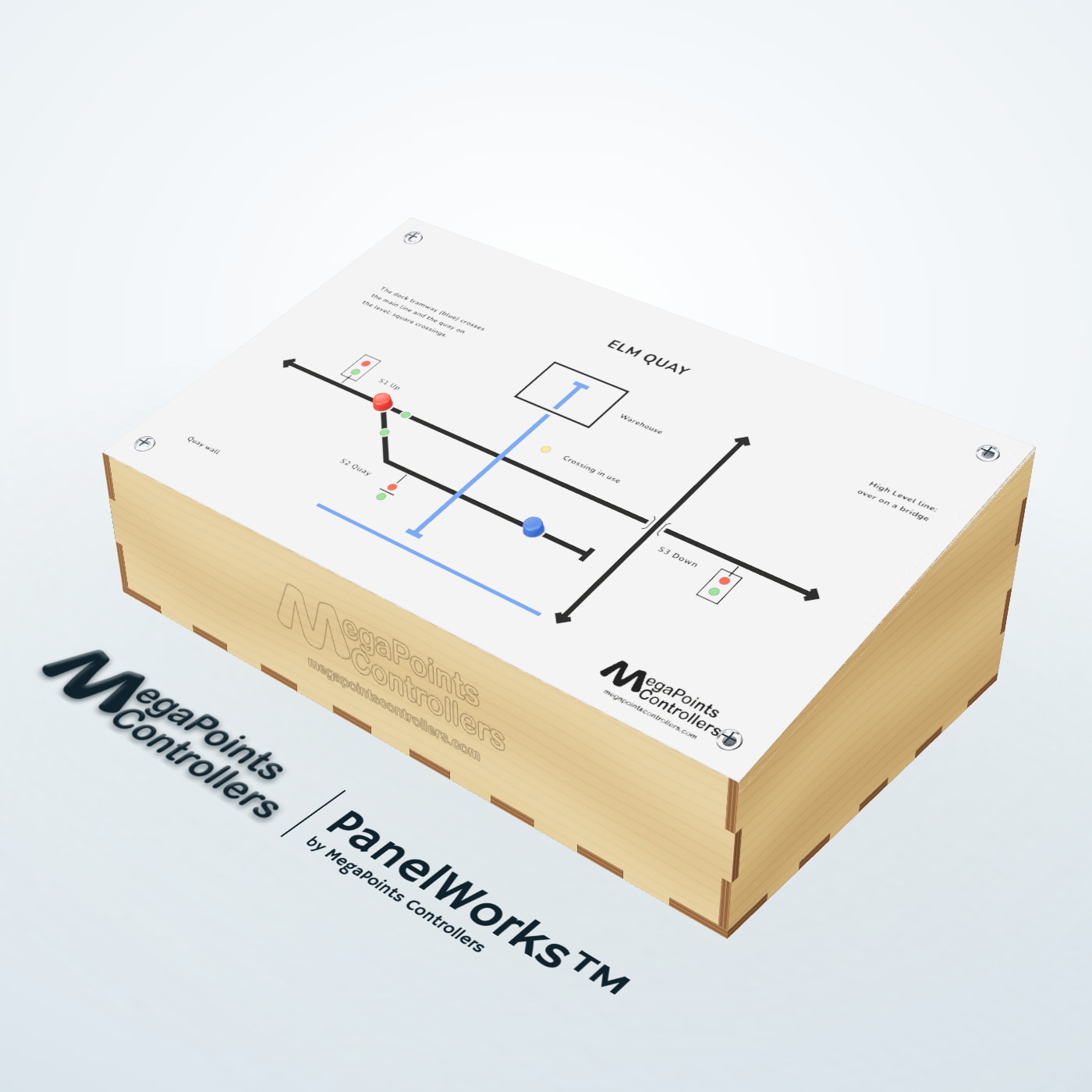

Elm Quay, a 250 x 150 mm sample PanelWorks mimic panel on the finest 10 mm grid, in its sloping plywood enclosure

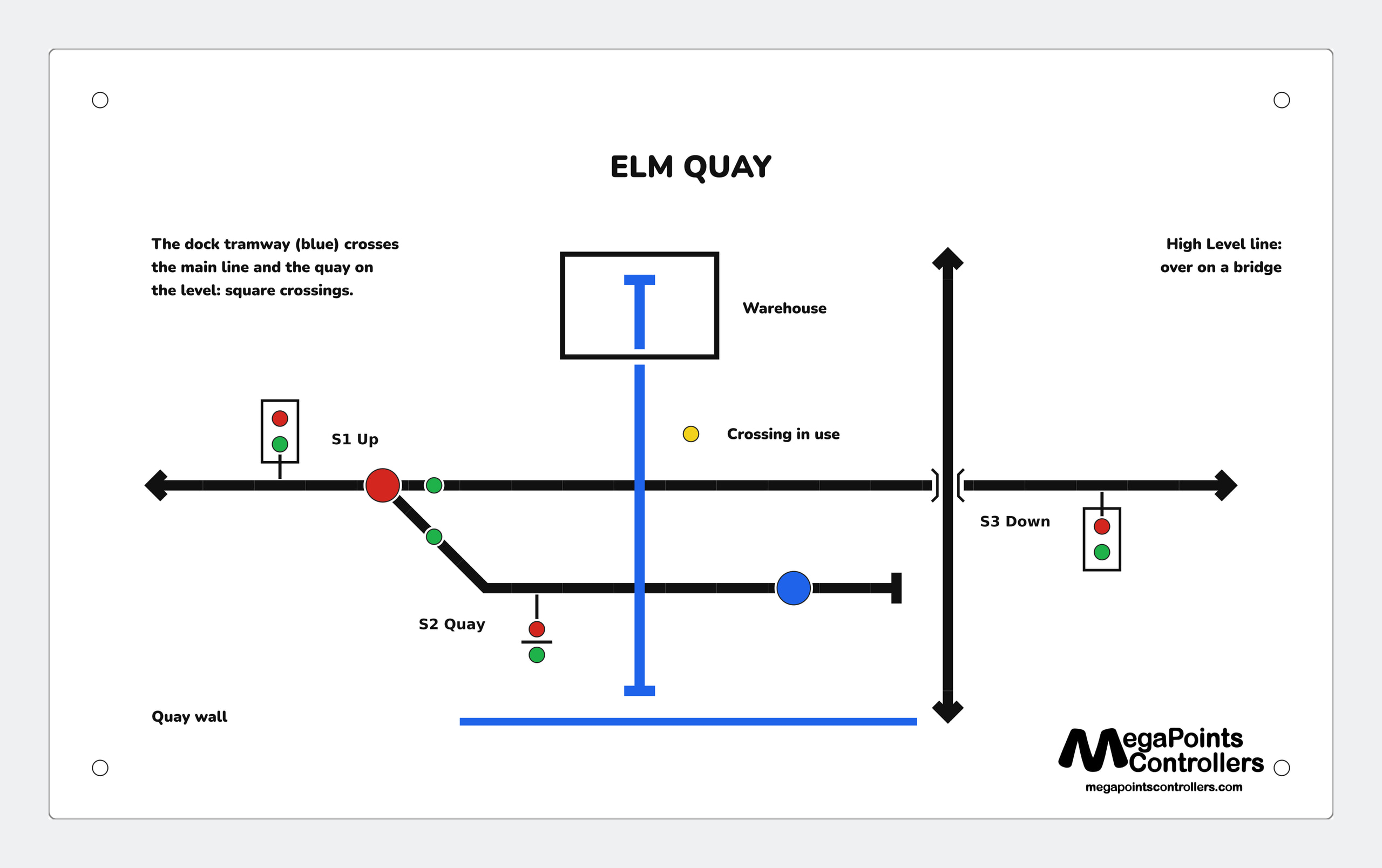

The proof of Elm Quay: a dock tramway crossing the line on the level, and a High Level line crossing over it on a bridge

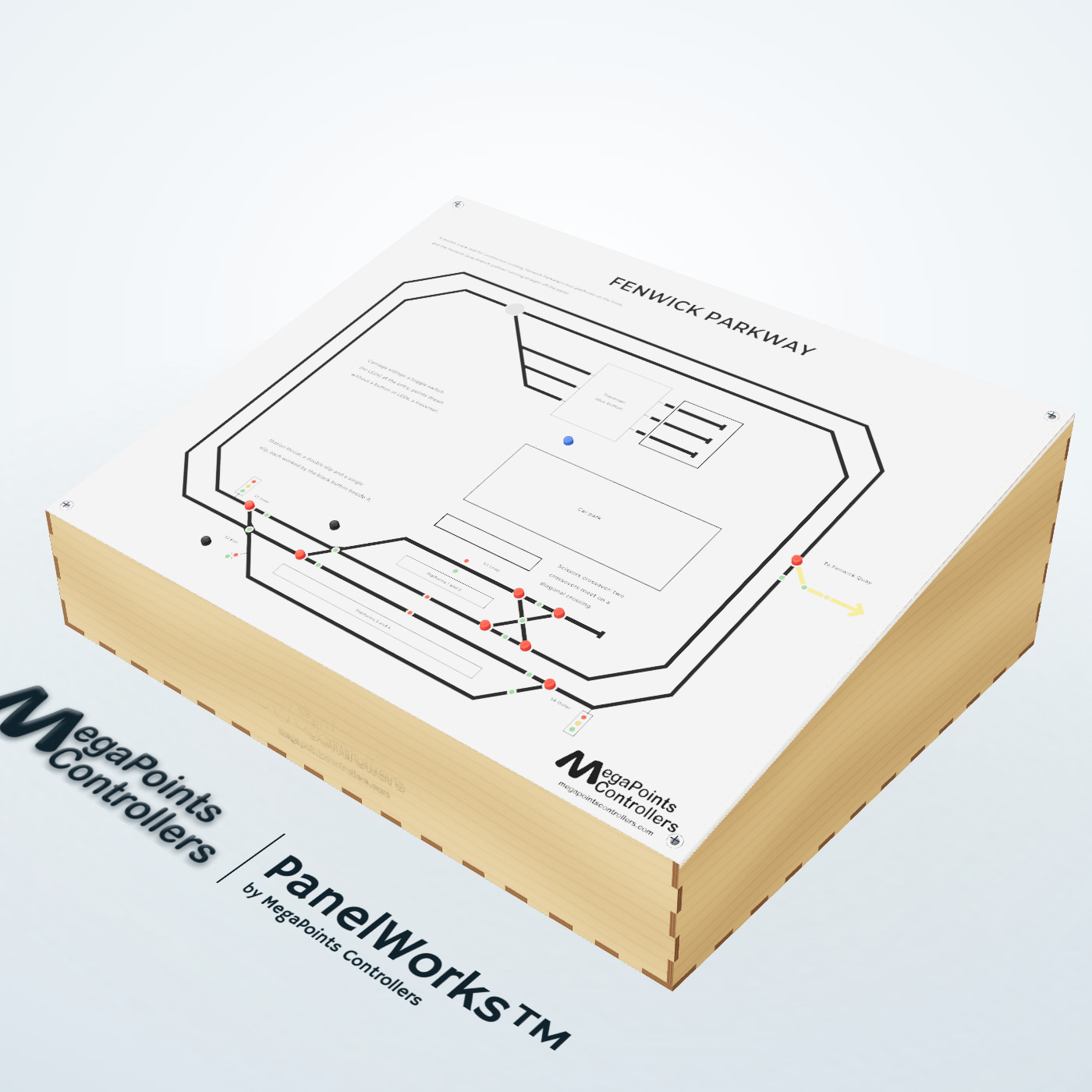

Fenwick Parkway, a 500 x 400 mm sample PanelWorks mimic panel: a double-track oval with a four-platform station and a branch, in its sloping plywood enclosure

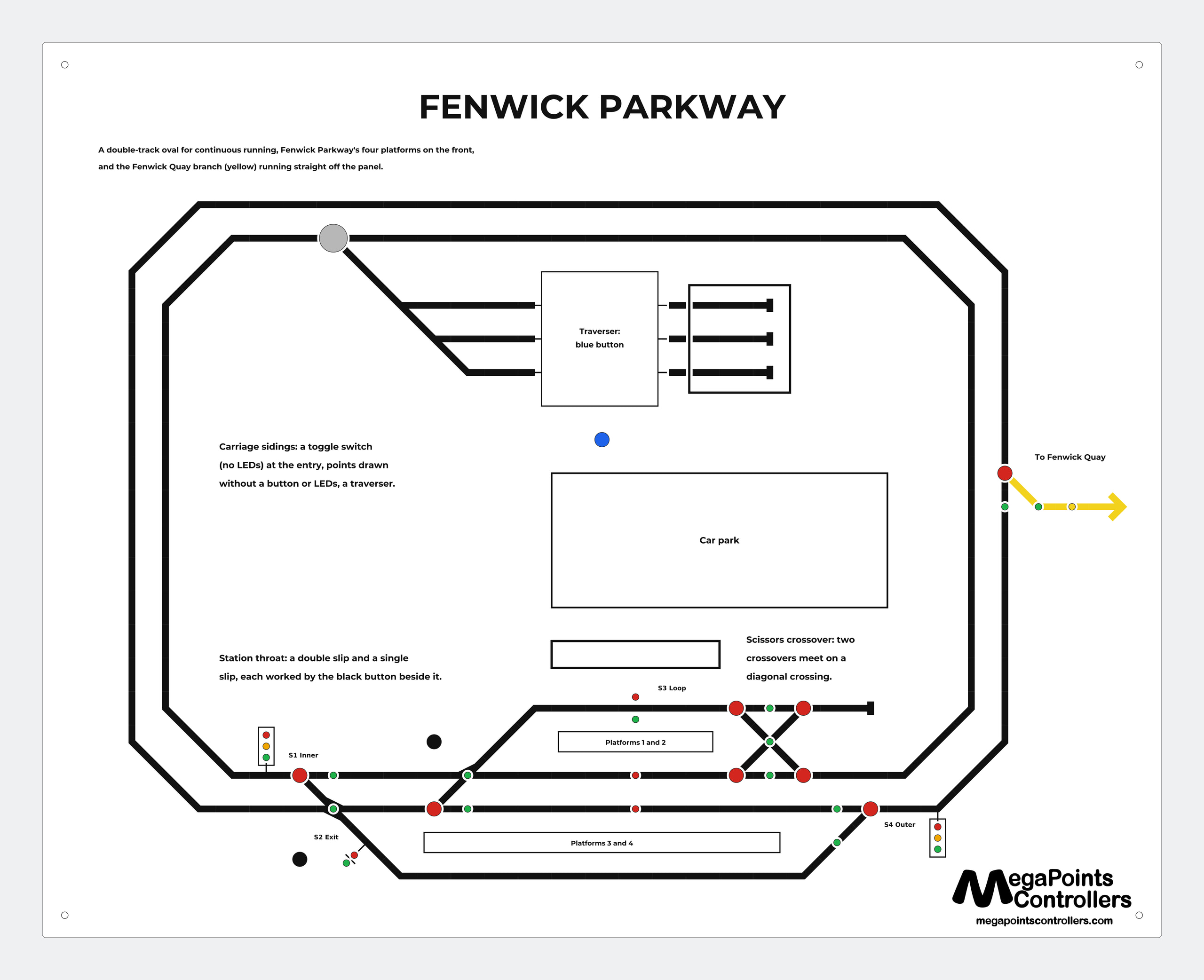

The proof of Fenwick Parkway: a double slip, a single slip and a scissors crossover in the station, carriage sidings with a traverser, and the branch in yellow

Bespoke Mimic Panel

Priced as you design it

Your own mimic panel, designed by you in your web browser and made to order by us.

Draw your track plan in the PanelWorks™ mimic panel designer, place your buttons and LEDs, and see your panel checked as you go. We engrave it, paint it if you would like us to, and send it to you.

Your panel can come with its own enclosure, sloping or flat: PanelWorks™ designs it around your panel automatically, and prices it with your panel.

Design yours in the PanelWorks™ mimic panel designer

Category:

Description

What it is

A mimic panel made to your own design: an engraved panel face on an MDF backing, cut and engraved in our workshop. You design it in the PanelWorks™ mimic panel designer, in your web browser, and the designer shows you its price as you draw.

What you choose

  • Its size and layout. Any size up to 500 × 400 mm. Lay out the roads, points and crossings, the buttons and LEDs, and your labels; the designer checks that everything has the room it needs.
  • Painted by us, or by you. We fill the engraving with black and with any line colours you draw in, or leave it unpainted for you to paint yourself.
  • An enclosure, if you would like one. Choose sloping or flat and PanelWorks™ designs it around your panel for you: made to fit, cut from plywood chosen for your panel’s size, engraved with the MegaPoints logo front and rear, and supplied as a flat pack with illustrated assembly instructions.

Before anything is made

Once your order is paid for, your panel comes to our workshop to be checked. If anything needs putting right we tell you, and we send you its final proof: nothing is made until you have approved it. Your panel is then made to order and sent about 2–3 weeks from the date of your order.

Buttons, LEDs and System2 boards

They are not part of the panel. The designer lists exactly what your panel needs from our shop, to order separately if you want them.
